Flame Sensors

Our range of flame sensors, UV flame sensor, UV flame relay has been designed and developed using sophisticated technologies. These precision engineered instruments are known for performance and easy of operation. We supply flame sensors in standard technical specifications used in industries as well as tailor-made specifications.

Flame Sensors Flame Sensors
Flame Sensors

These UV flame sensors, UV flame relays use light dependent resistor ( LDR ) for sensing flame and senses the light emitted by the flame. Suited for oil burners in boilers, the sensor senses every type of light such assun light and rays emitted by electric bulb / tube light.

Models Offered :

Yes! I am interested


We lead the market in manufacturing and supplying high quality ignition transformer for industrial heating application. Designed as per quality standards, our product exhibits superior ignition advantages & hence is widely used in oil heating industries. Our completely tested ignition transformer are safe and durable. We offer this to our vast clientele base at very competitive and affordable price range. The specifications are detailed as follows:

Ignition Transformer

Technical data - Ignition system MKZ 100 -(Part No. 0.096 600 017)
Operating voltage 230 V (-15 % 10 %) 50/60 Hz
Primary Currrent 0.22 A
Output Connection 50 VA
Primary 2 x flat plug 2.8 mm
Secondary 2 x 4 mm drop in pins
Ignition voltage 2 x 7.5 kV
Ignition frequency 25/30 Hz
Ignition spark energy approx 500 ml
Duty cycle 100 %
Sparking distance 1.5 -3mm
Operating temperature 0.60°C
Fitting position as required
Weight 300 g

Yes! I am interested

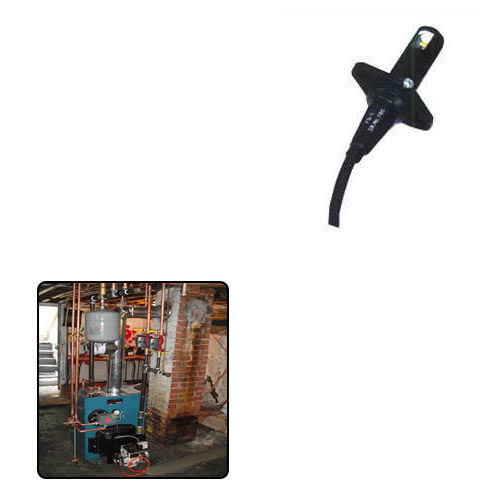

Flame Sensors for Oil Fired Burners

Manufactured in compliance with the set industrial norms, the offered product Flame Sensors for Oil Fired Burners is one of the finest that is available in the market. Made available in several specifications at a reasonable price, the offered flame sensor has a high preference in the market.


  • Light dependent resistor for detecting flame
  • Easy to operate
  • Durable
  • Accurate performance
  • Engineered with precision
