We offer a comprehensive range of UV
sensor and amplifiers, which are used in various industries such as
chemical, petrochemical, pharmaceutical etc. Offered in standard as well as
customized specifications, these systems detect UV radiations emitted by the
naked flames by gas, coal and oil fired burners.
 |
 |
| UV Sensor - 01 |

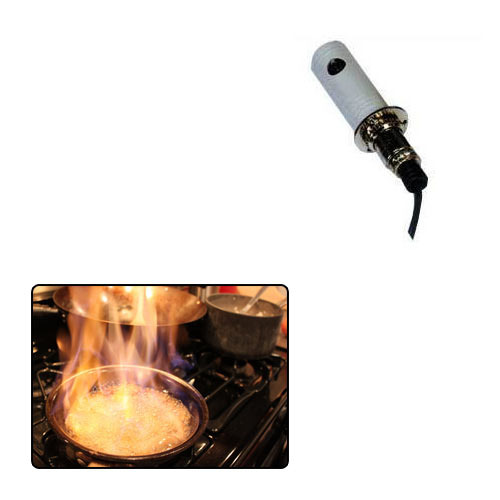

UV Sensor For Oil / Gas Flames |
 |
 |
| UV Amplifier |
UV Sensor - 02 |
UV Flame Sensor designed by Linear Systems uses very sensitive electronic
UV tube. The specially tuned UV tube is designed to detect UV radiations
emitted by the naked flame. The UV Flame Sensor is insensitive to normal
light and refractory glow in furnace walls. UV Sensor is ideally suited for
detecting all types of flame, namely flames due to Gas / Coal / Oil fired
burners in Boiler and Furnaces.

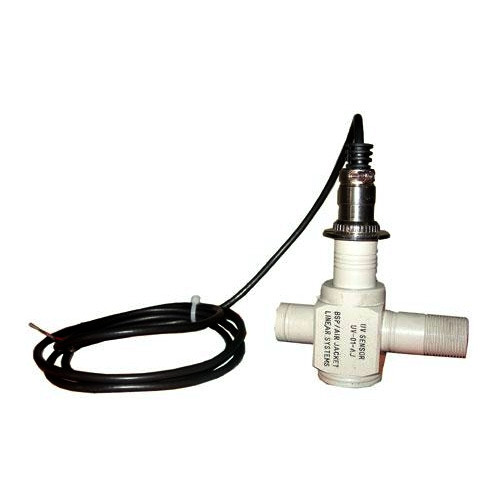

UV Sensor
( Model UV - 01 -AJ ) has been specially designed for
harsh industrial environment. It provides for easy cleaning of the UV Sensor
and viewing of the flame. UV Flame sensor is housed in a metal jacket to
provide mechnacial protection and various mounting features.
UV Flame Amplifier / Relay
(Model UV - FR - 01 ) is used in
conjunction with UV Flame Sensor to detect various types of flames namely
gas, oil, coal etc. The UV Flame Amplifier is essentially a stand alone
unit, which has Two Potential Free relay contact outputs rated at 230 V AC,
5 Amps. The out put contacts can be used for alarm, annunciation or trip
purposes. The ftont panel has indications for SUPPLY ON. This will turn ON
when the supply is given. RELA Y ON indicator presence of UV radiation /
flame.
Model
UV - FR - 21, has a site adjustable time delay of 2 - 8
seconds and is useful for installations with high flicker situation.
UV Flame Amplifiers / Relay has been designed to work with Limear Systems
make UV Sensor UV - 01. However, it has been found working satisfactorily
with UV Sensors of various other makes, namely Honeywell, Landis & Gyr,
Satronic etc. It is important to ensure that the various makes is rated 230
V AC.rms
